Magnetic filter systems Mikro-S-Filter

Band filters - series PB

Use
Band filters are used for the fully automatic continuous cleaning of cutting fluids with high requirements on the purity level and when machining ferrous, magnetic materials.

Materials and application conditions

Band filter: Sheet steel with corrosion protection, Aluminium cast
Filter material: Fleece made of viscose rayon
Other non-woven are available on request

Construction and operation
Band filters consist of two side members with two return and transport rollers fort the endless transport belt. The side members have supports fort he filter fleece. The medium to be filtered passes through an infeed box on to the trough-shaped filter surface and then passes through the filter fleece by means of gravity. The impurities are retained in the fleece. The filter cake thus formed has a positive influence on the filter fineness. The increasing saturation level trips the transport of the filter fleece via the float switch, the control electrics and the geared motor.
The used filter fleece is transported into the sludge box and new filter fleece inserted into the filter trough (the sludge box is not supplied as standard).

Our filter systems are produced by experienced workers. Most of these have many years of experience on the field of producing filter technics.

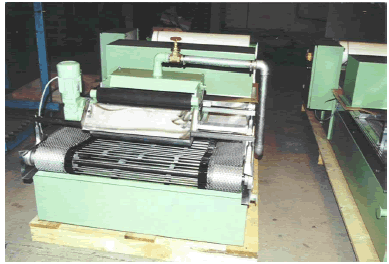

The series of three band filter systems shown on the picture above was produced for a famous German manufacturer of complete filter systems and was exported within the framework of a large project.


According to the specific needs of our costumers, filter, filter systems and filter systems with several filters are produced with special components, which correspond to the specific technical case of operation.



Meaningful documentations (available in a foreign language on request) make the installation and the technical servicing by own staff easier.


Our own servicing staff is of course also available for our costumers (in our home country in no longer than 24 hours).


A lot of spare parts and expendable items can be found in our stock, so that short delivery periods can be guaranteed.
